About Us

Your unique partner in elevated superiority

Falck-Schmidt has extensive knowledge in the design of masts made of composite material with zero backlash, control of deflection and natural frequency issue. Focus on integration in vehicles and trailer based solutions.

Customized design regarding the flexibility of height, high strength and rigidity, integration of pay-load & drive systems.

Falck-Schmidt is a global leader in the design, development, production, support and sustainment of elevated mast systems. Our focus is to partner with our customers to deliver a system platform that ensures and enhances the capabilities and requirements of the customer’s needs.

Falck-Schmidt’s innovation has resulted in the increased survivability, greater firepower, unmatched mobility and enhanced battlefield effectiveness to be prepare for the challenges the military faces on today’s modern battlefield.

Falck-Schmidt has extensive knowledge in the design of masts made of composite material with zero backlash, control of deflection and natural frequency issue. Focus on integration in vehicles.

Each new series of mast is better than the last. With decades of experience working with armored tracked and wheeled and the integration of subsystems within it. We have worked with laser guided munitions, highly advanced cameras, radars systems and communication installations.

Customized design regarding the flexibility of height, high strength and rigidity, integration of pay-load & drive systems.

Falck-Schmidts’ foundation is built upon innovation, safety and the strength of our family of mast systems. ATGM, ETS, ETS-1, ETS-2, REMS, MLSP, FPS, LWM, HMM, EMP, and our newest member THOR.

THOR

THOR (LWM – HMM – EMP – FPS)

THOR is the most durable mast on the market today with a simple templet raging from 300mm stowed height to 15+ meters height with OTM (on the move) capabilities at any height.

The THOR mast also has similar payload template that ranges from 0kg/0lbs to 400kg/890lbs.

THOR is electro mechanical machine operation with manual backup to ensure it is always operationally ready.

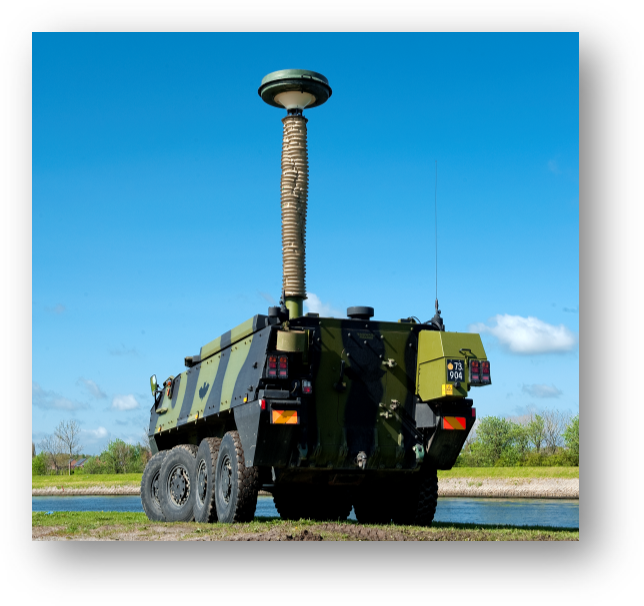

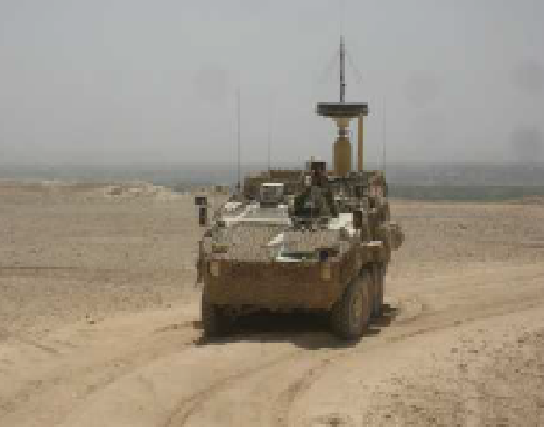

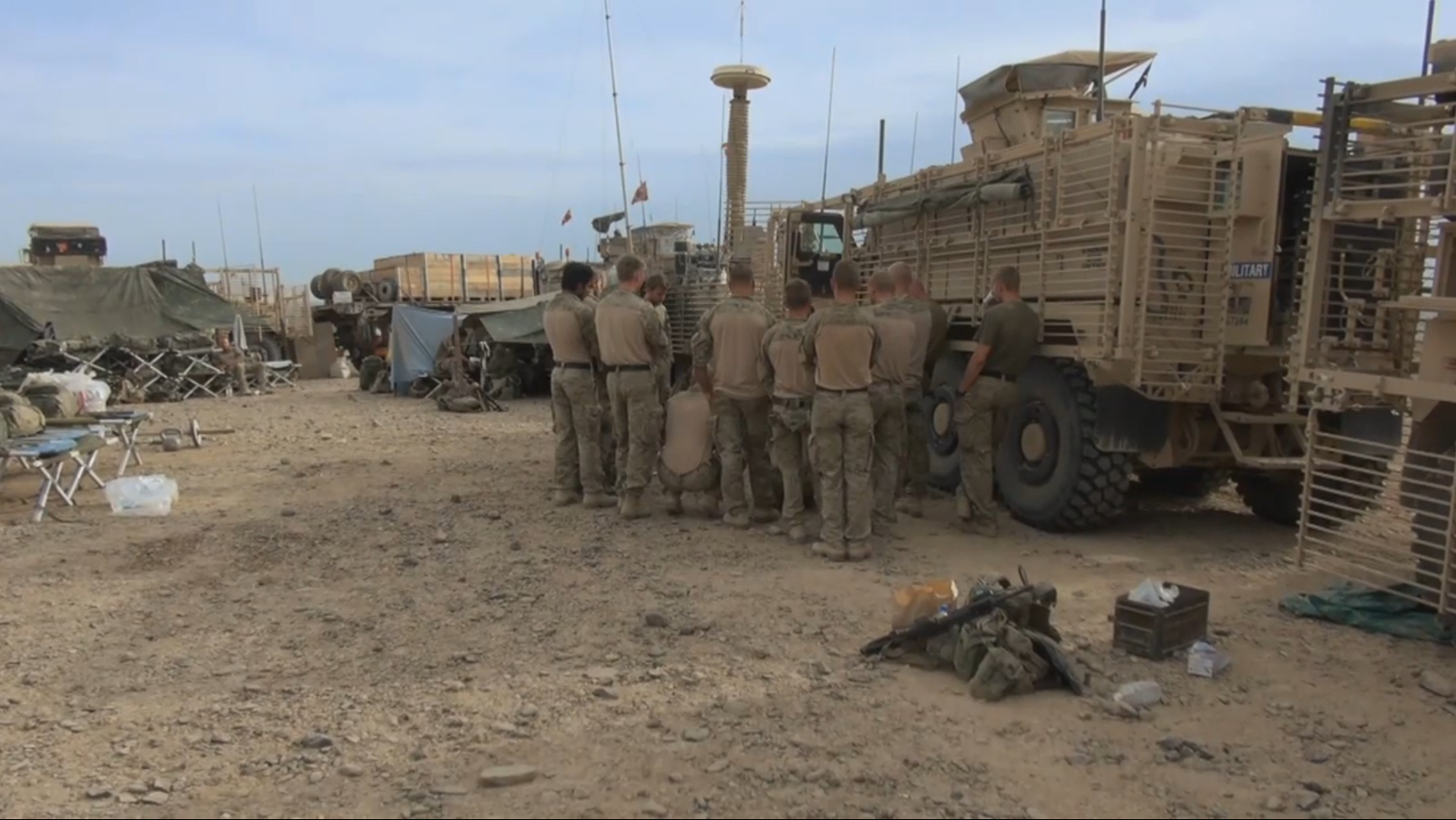

THOR (HMM) mounted on Armed Wheeled Vehicle (Courtesy of the Royal Danish Army)

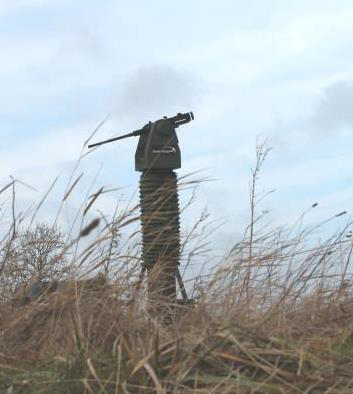

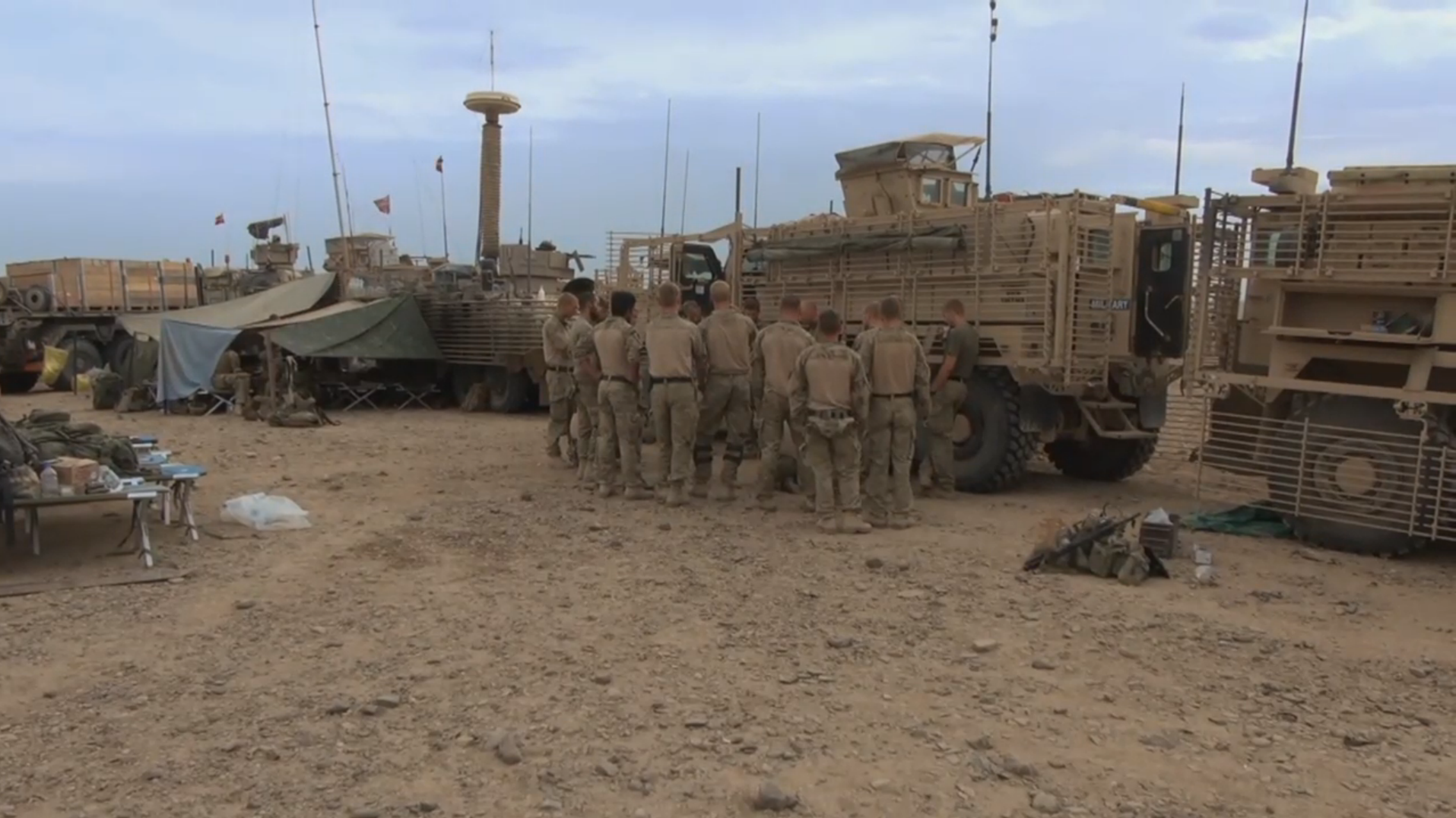

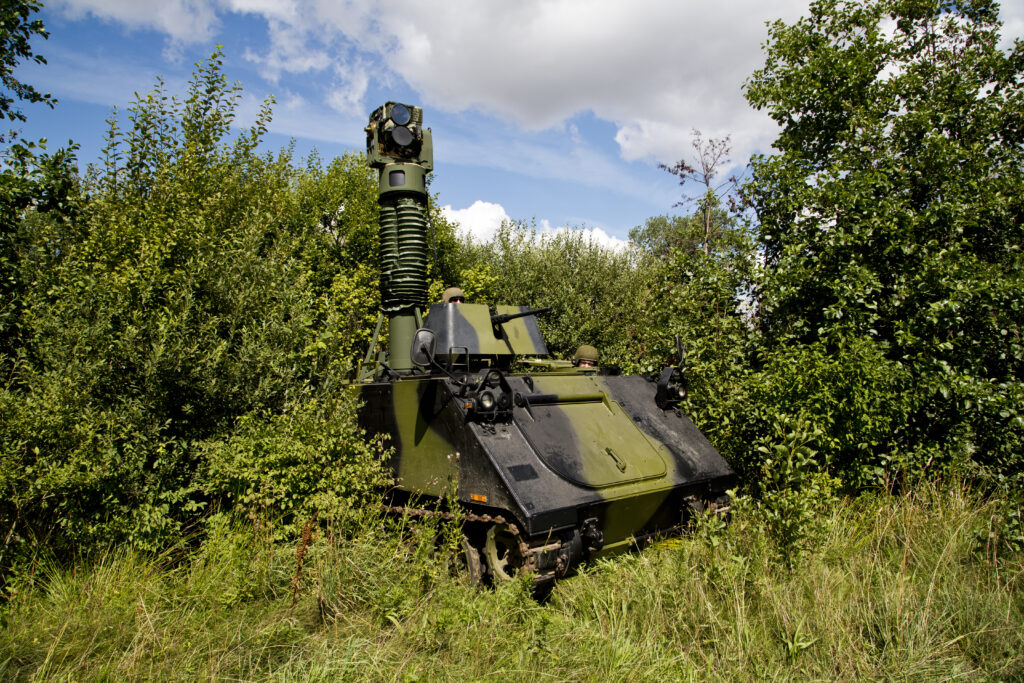

Courtesy of the Royal Danish Army. (THOR (HMM – High Mobility Mast))

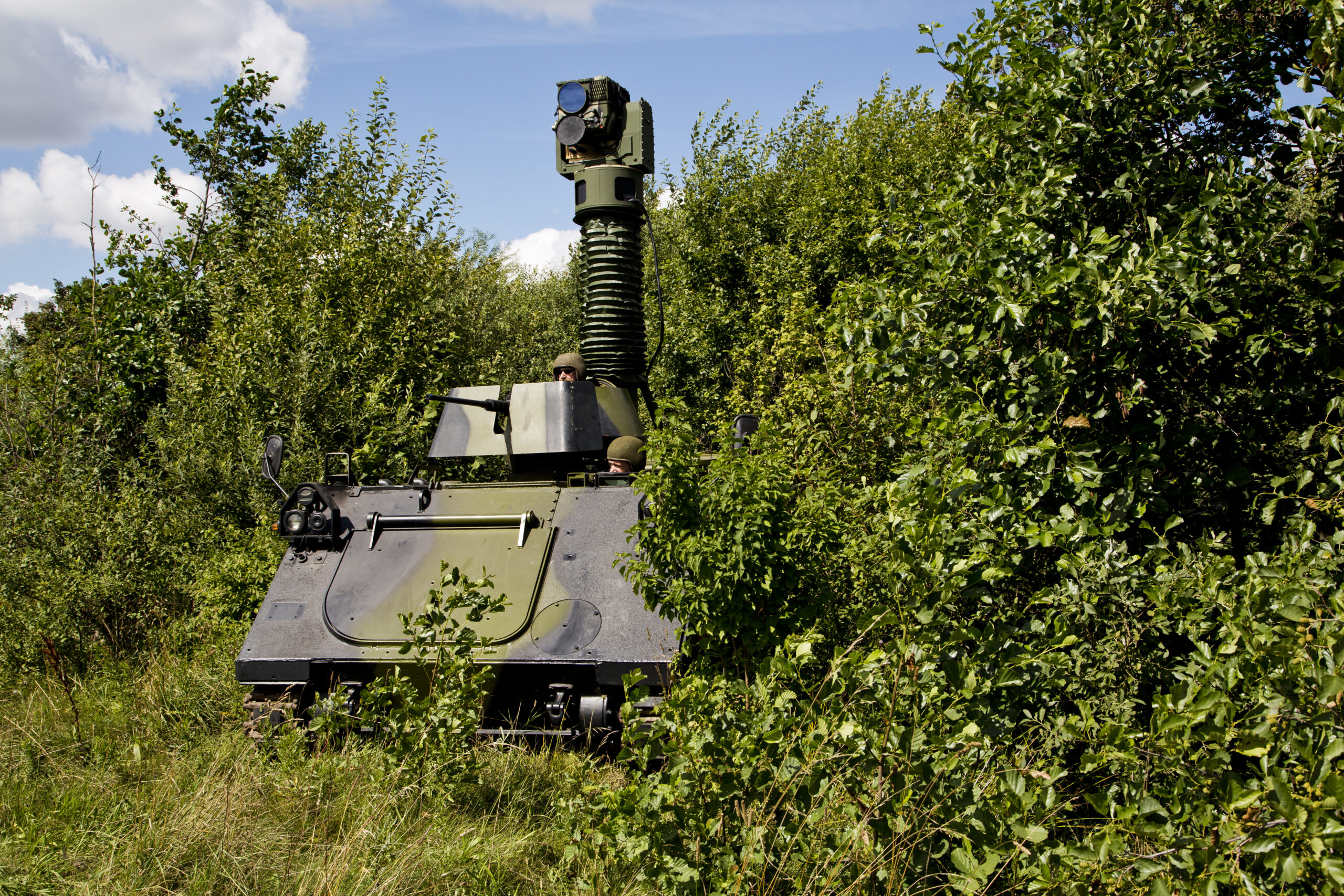

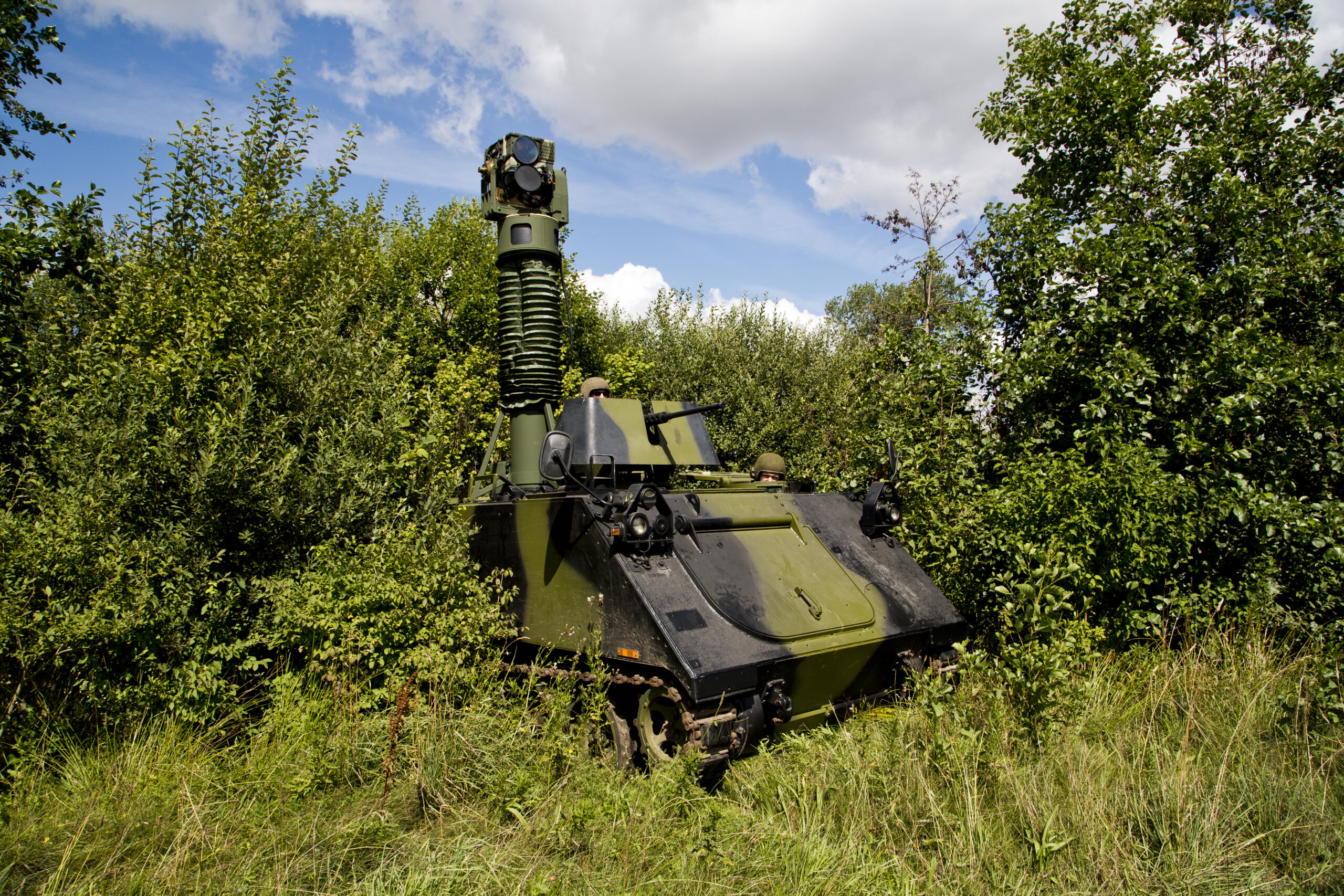

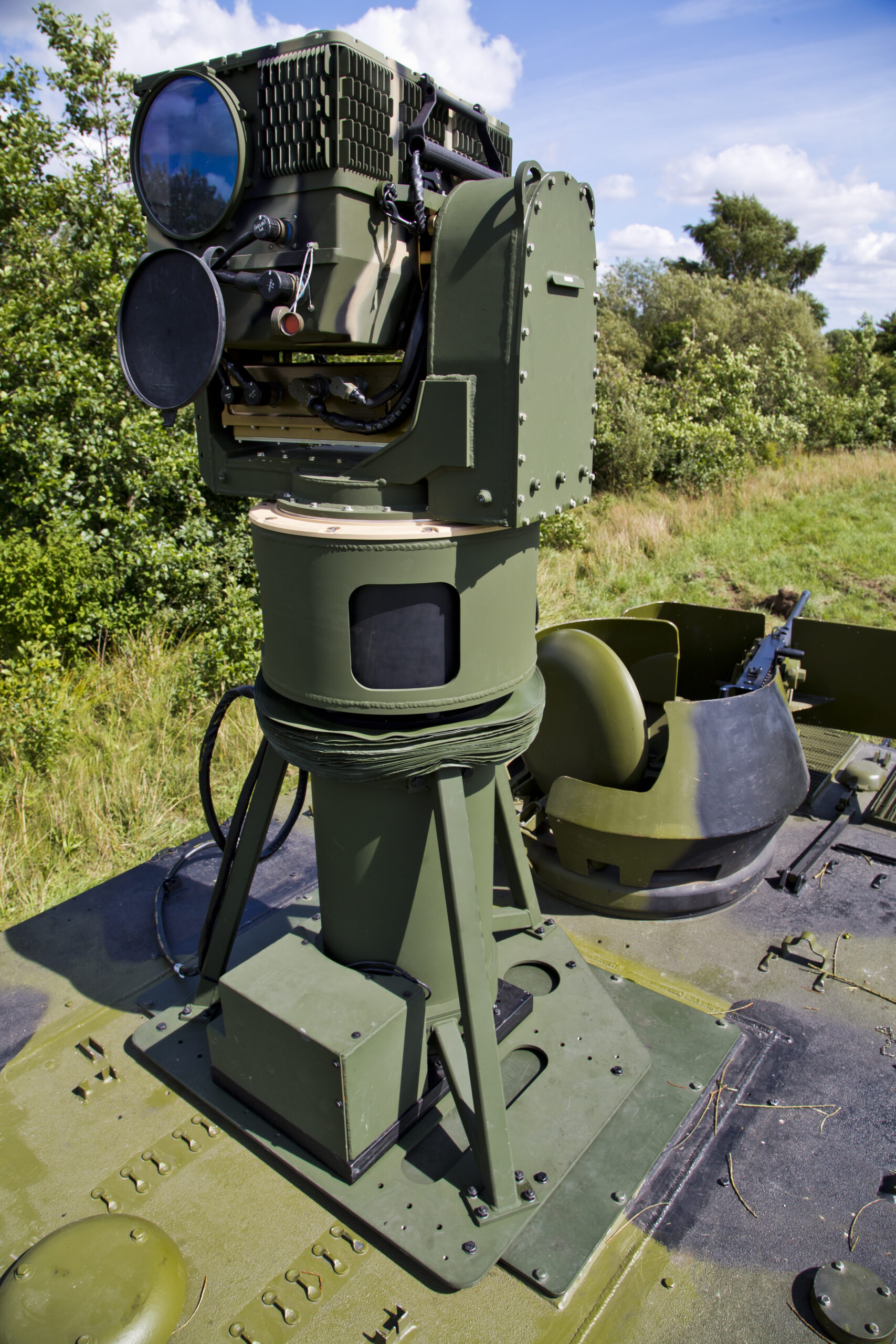

Camera systems fully integrated and mounted on top of mast on top of vehicle. The extra heigh advantage gives the user a much better field-of-view. Hides the vehicle out-of-sight and gives the user full mobility in any situation.

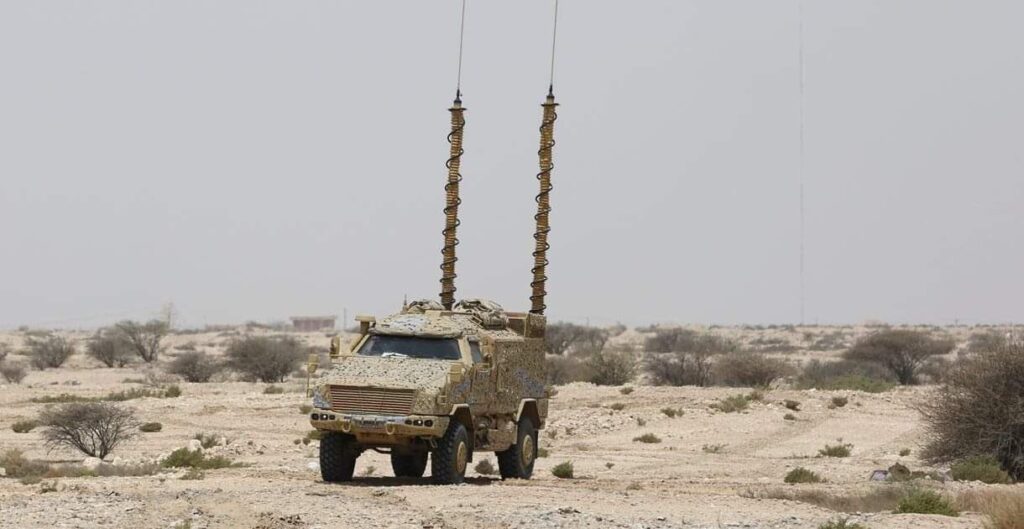

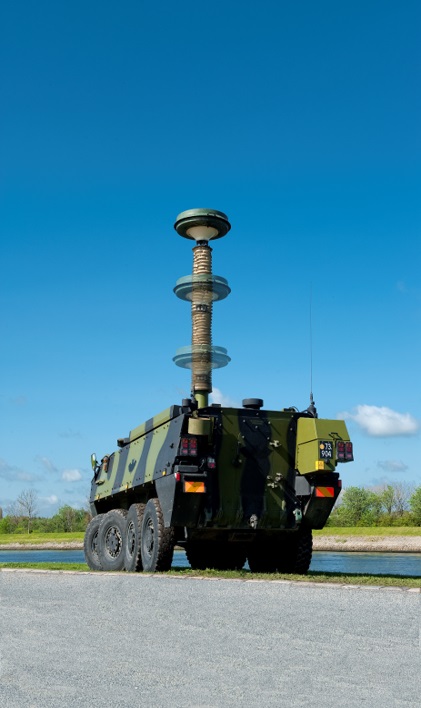

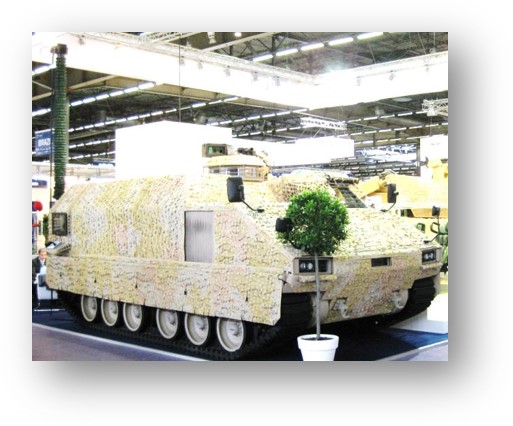

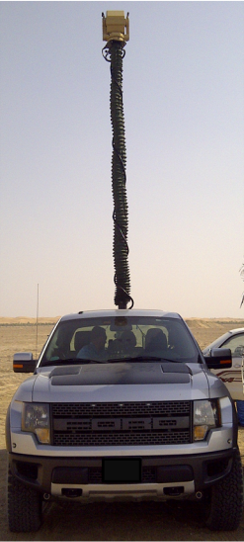

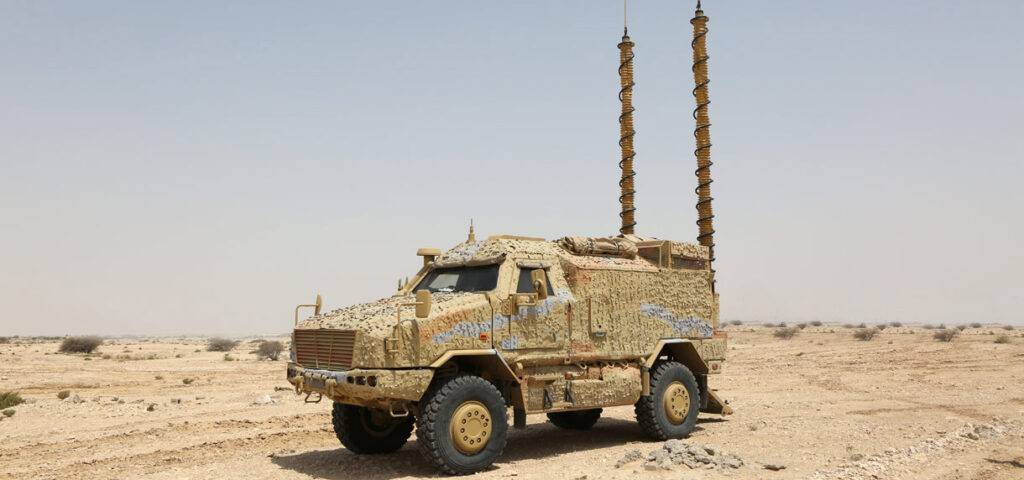

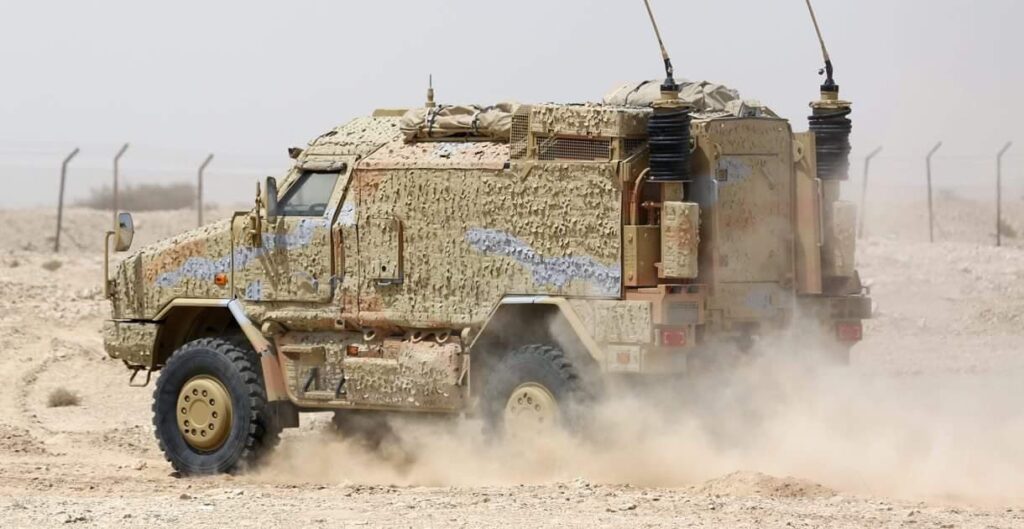

THOR (LWM) system in use (Courtesy KMW)

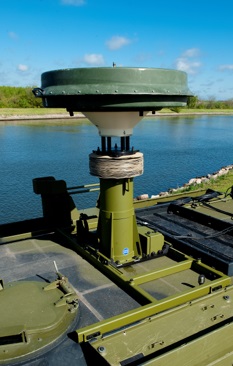

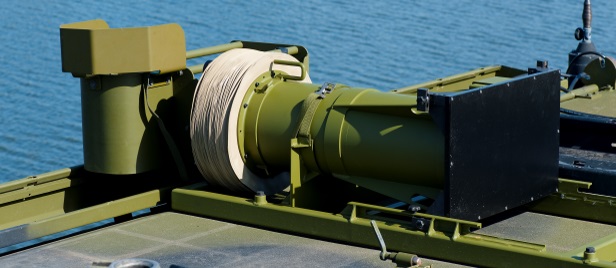

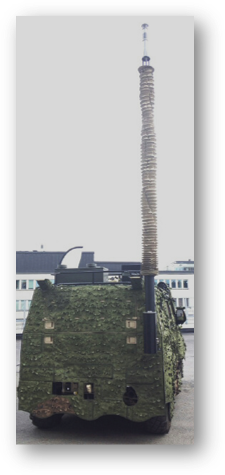

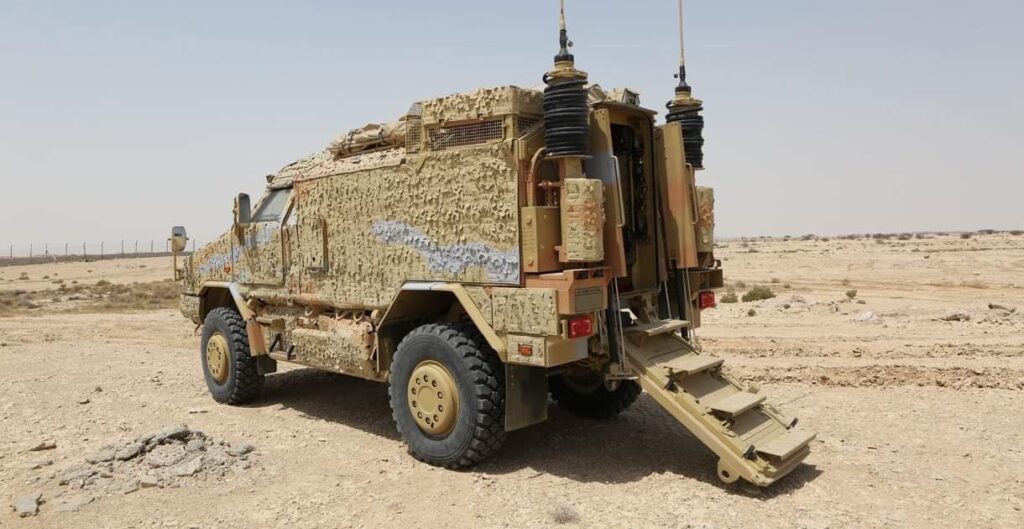

Full system integration and mounting of the THOR (LWM) on top of vehicle

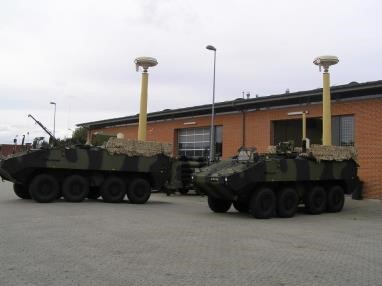

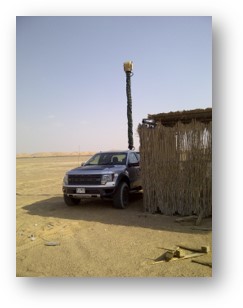

Differerent mounting and system use for the THOR (LWM (Light Weight Mast))

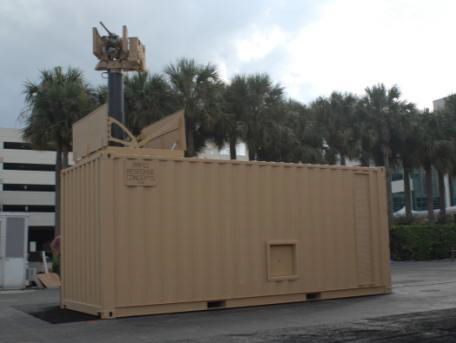

THOR (FPS (Force Protection System)) Incoqnito standard container

ODIN

ODIN (ETS – ETS I – ETS II)

ODIN consists of the elevation system, the Modified Improved Target Acquisition System (MITAS) and a twin TOW missile launcher.

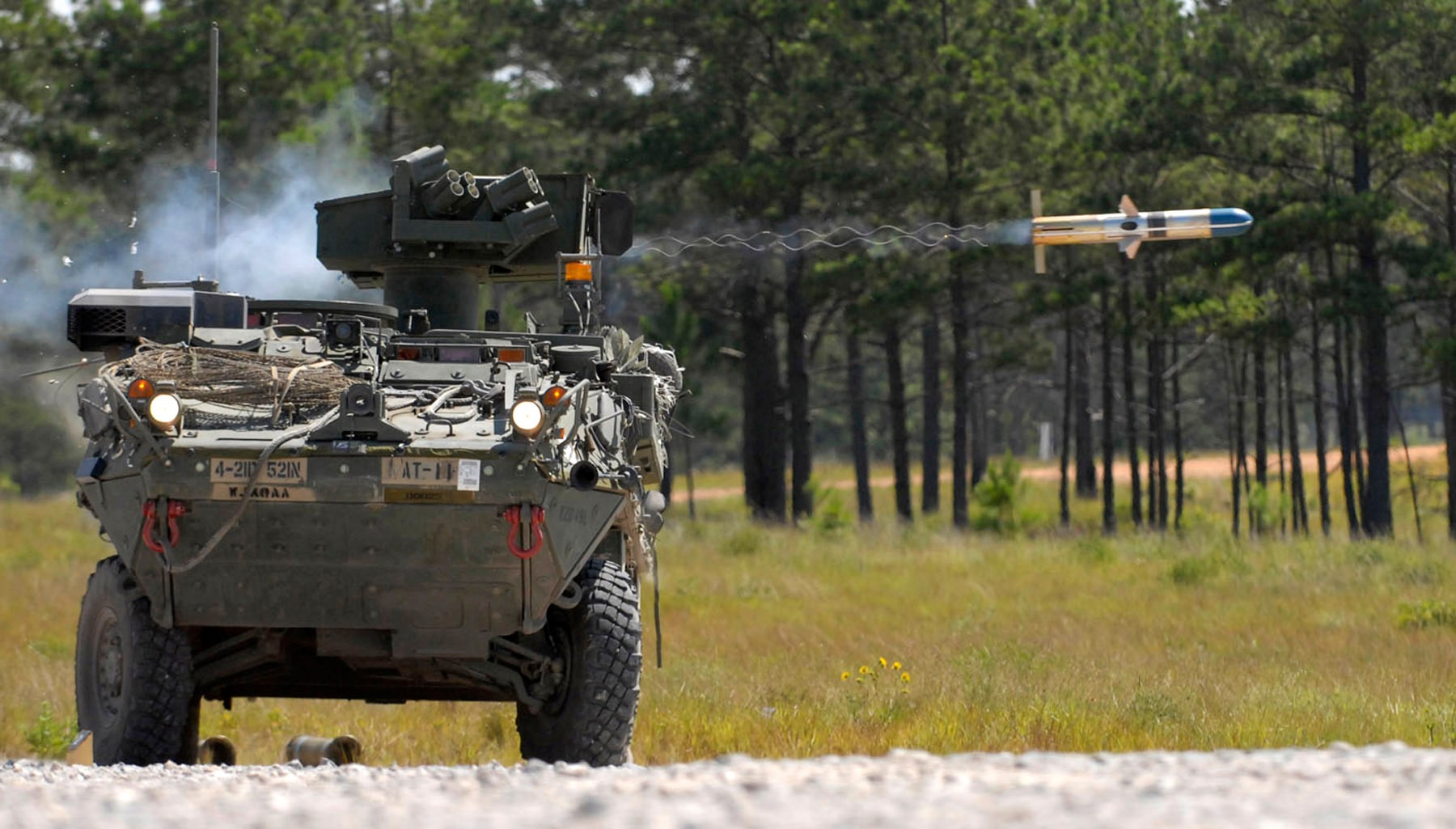

The tube-launched, optically-tracked, wireless-guided (TOW) weapon system under armor, provide accurate, long-range fire support to enhance the lethality, survivability, and maneuver for the combat teams.

Combat proven in Iraq, Kuwait & Afghanistan.

The system can be modified to work with other missiles and/or weapons systems.

ODIN I (ETS I)

The only mast that is comprised of metal tubes given it is the first iteration and the oldest.

Elevating mast with 2000kg/4400lbs of payload capability.

ODIN II (ETS II)

Fully mobile solution with elevated mast comprised entirely of carbon composites tubes.

Elevating mast with 2000kg/4400lbs of payload capability.

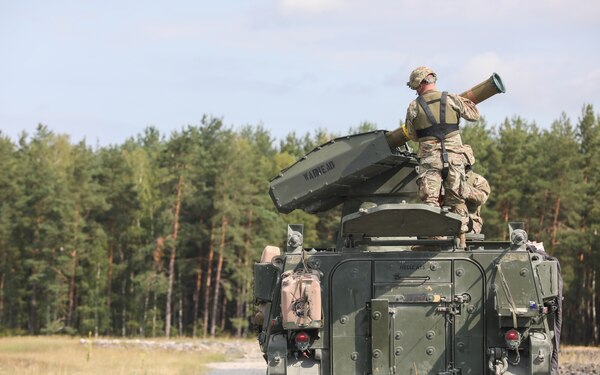

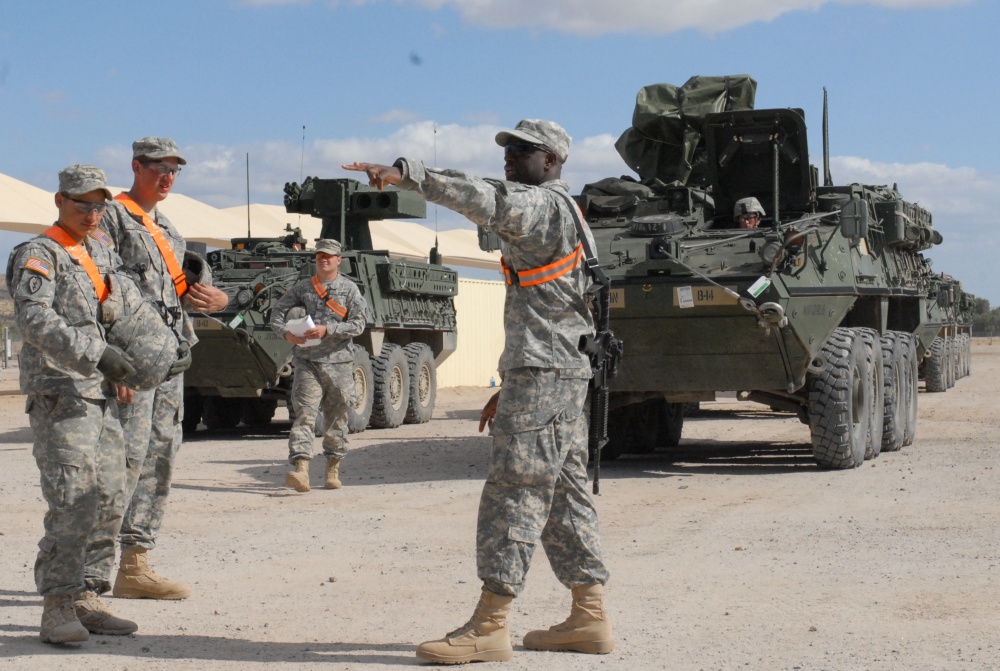

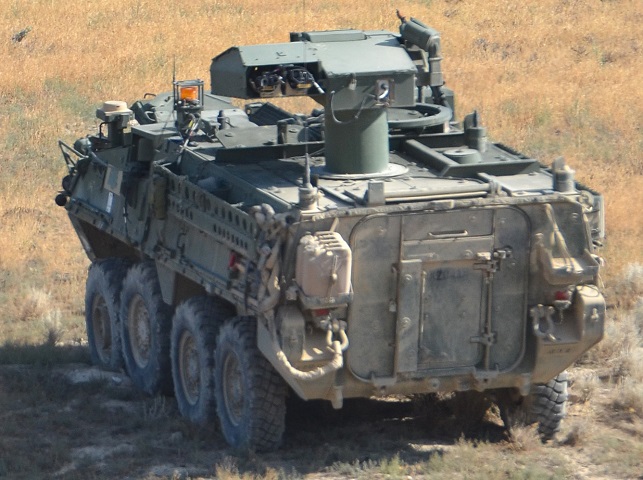

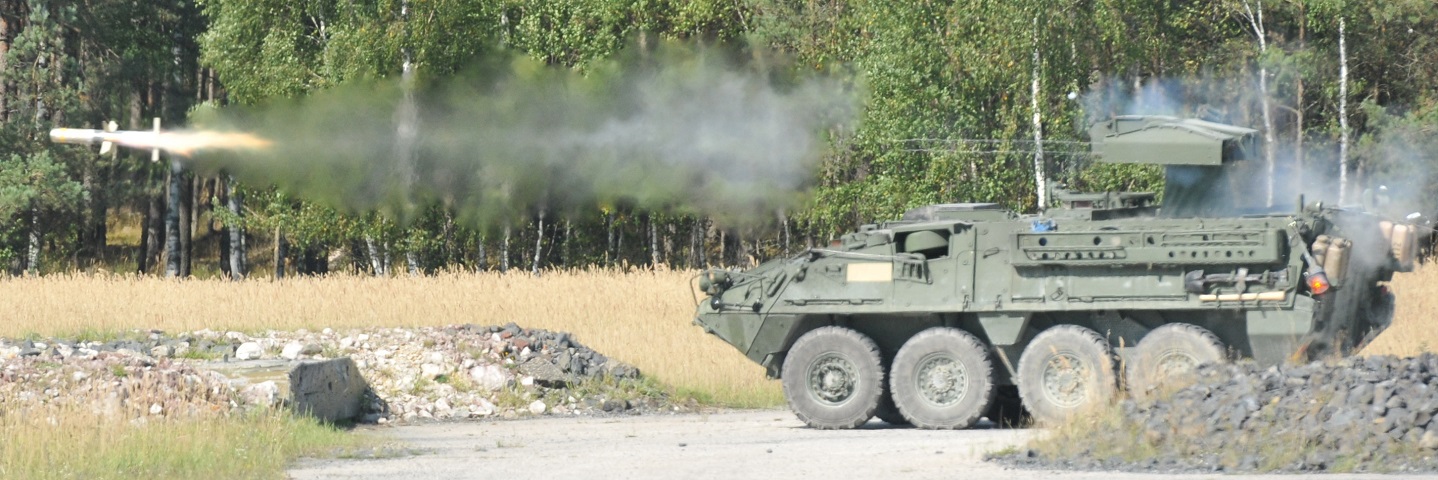

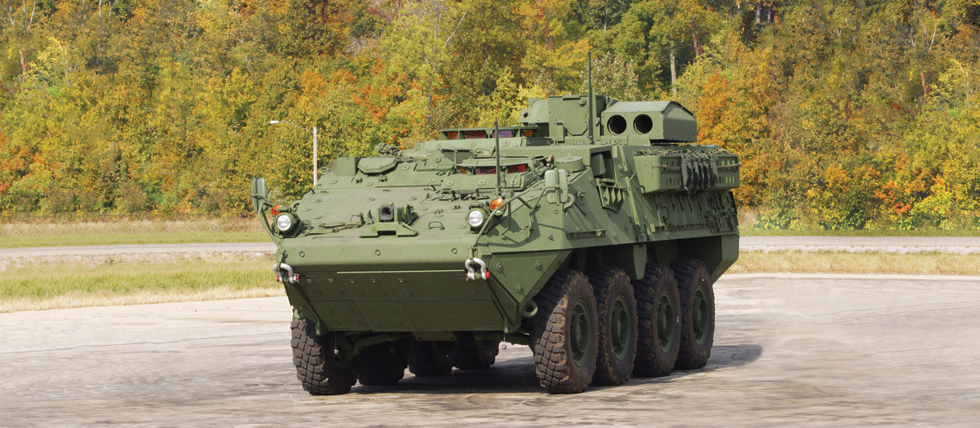

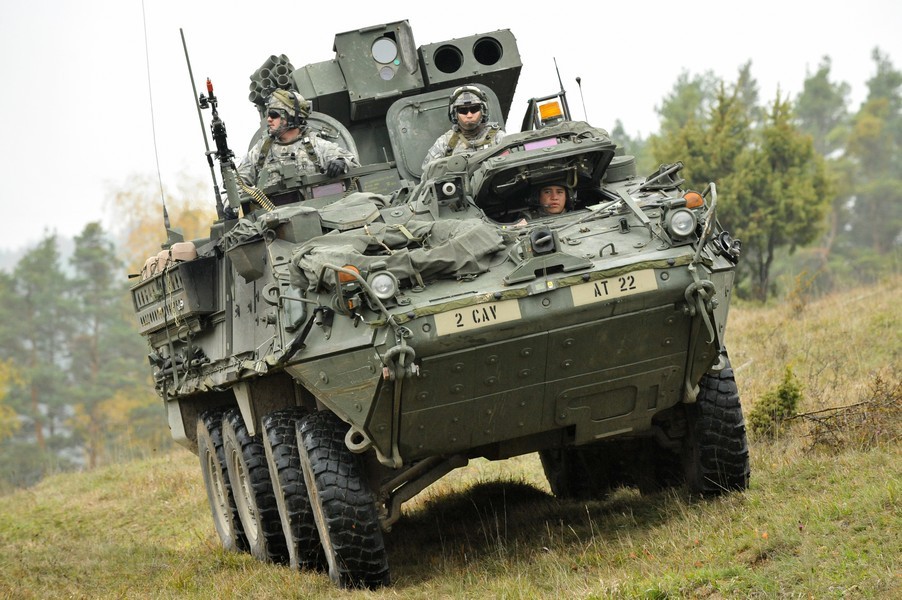

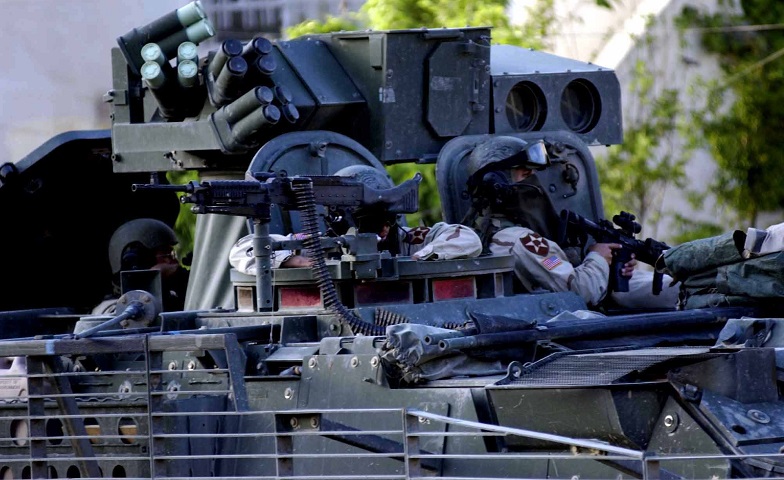

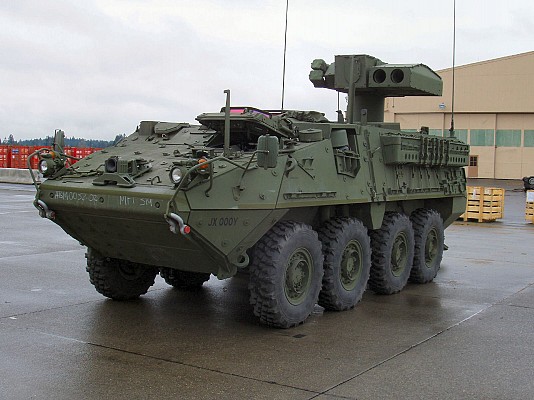

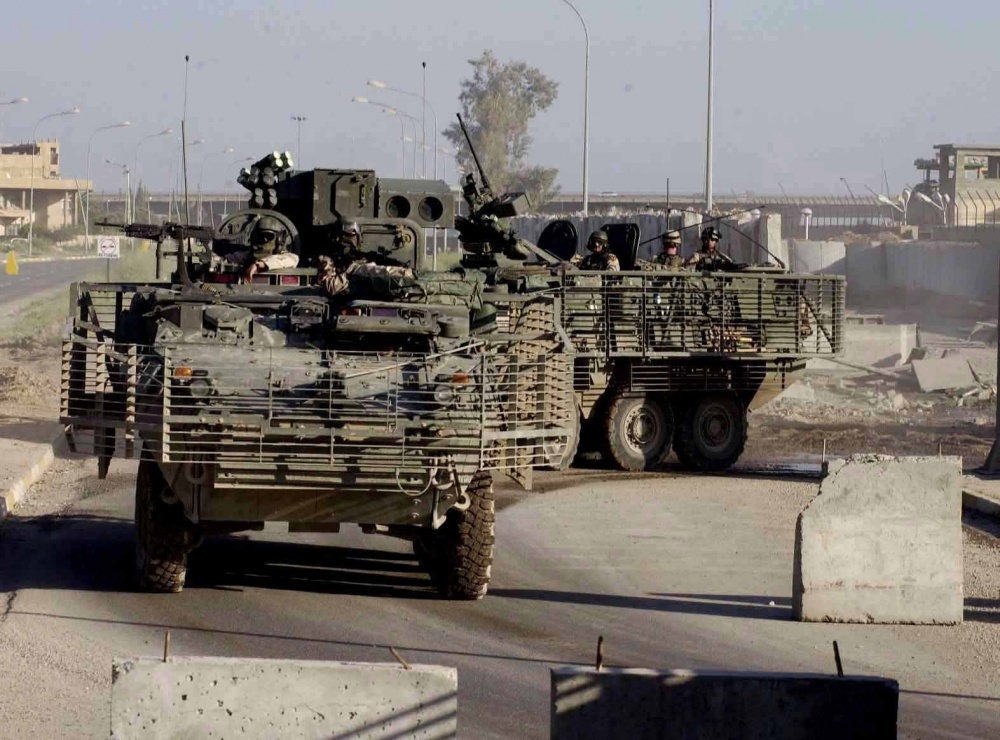

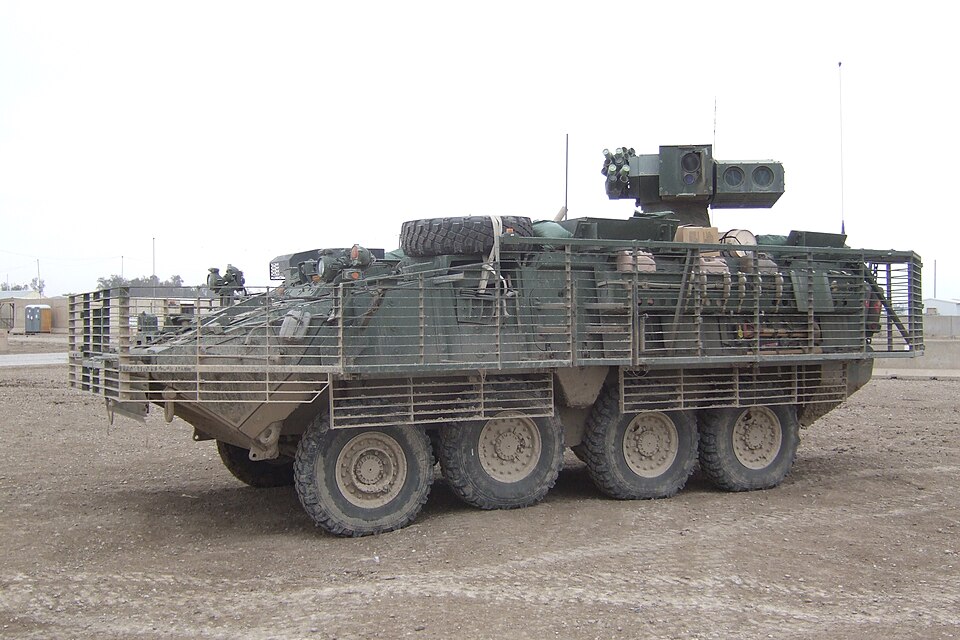

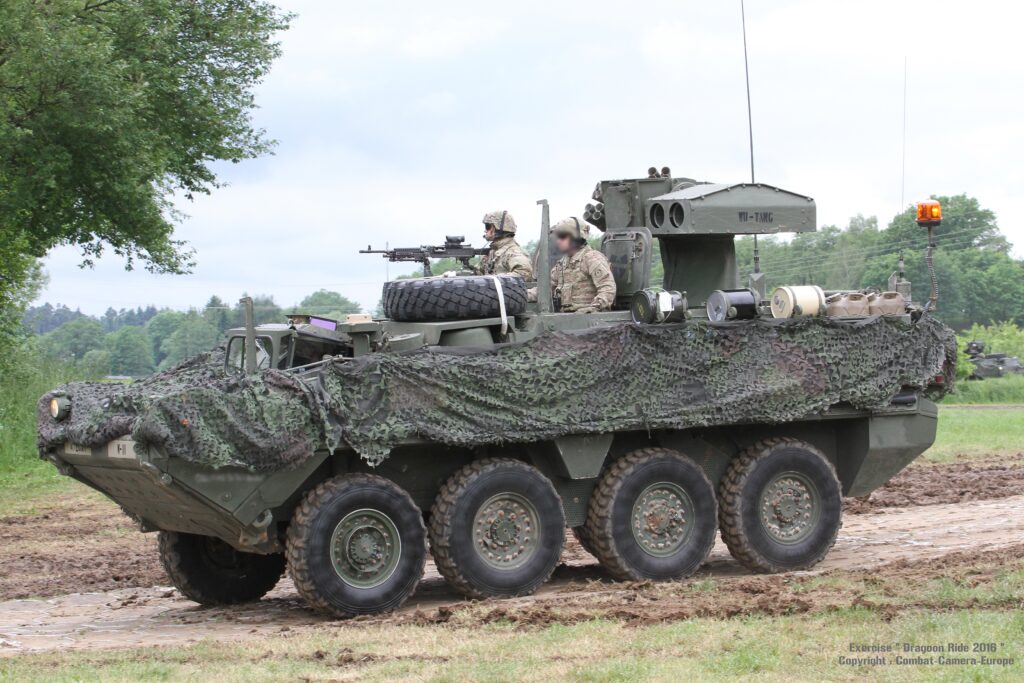

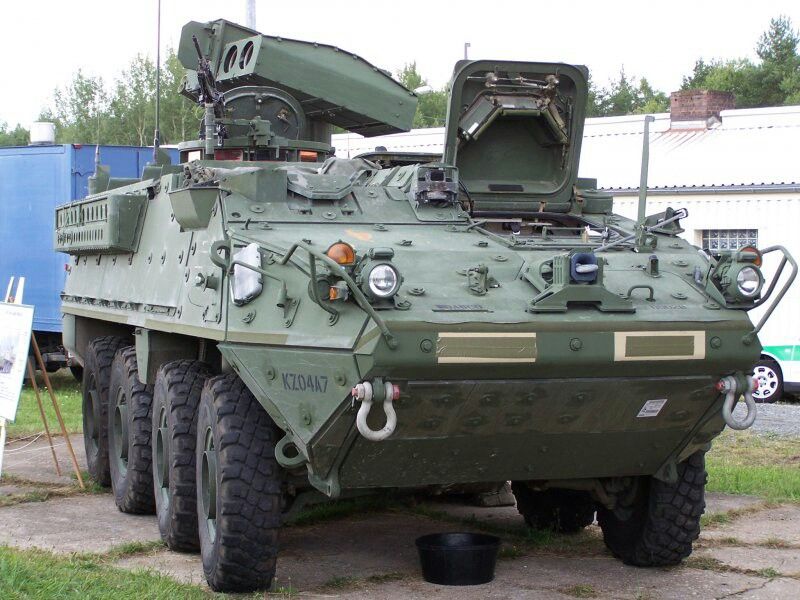

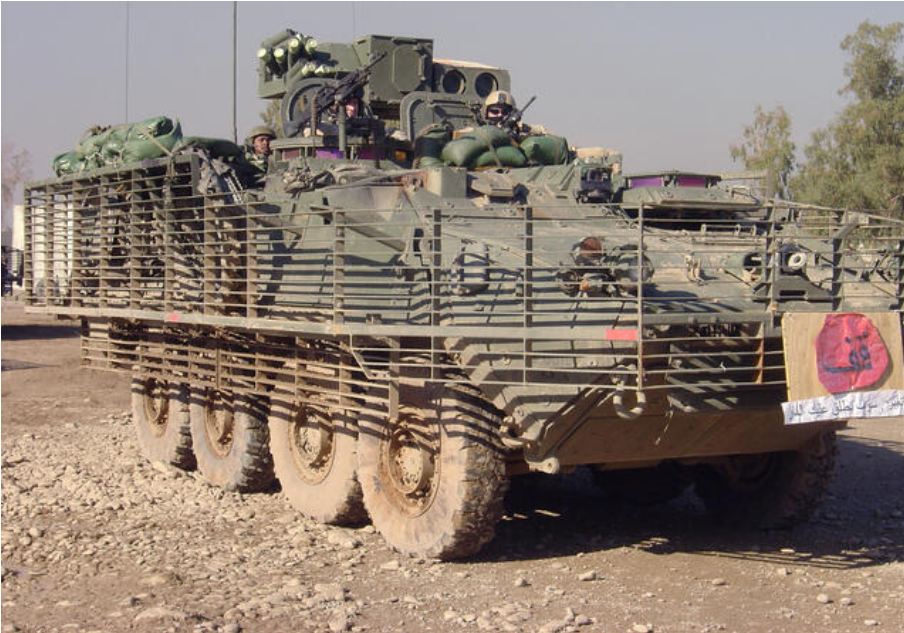

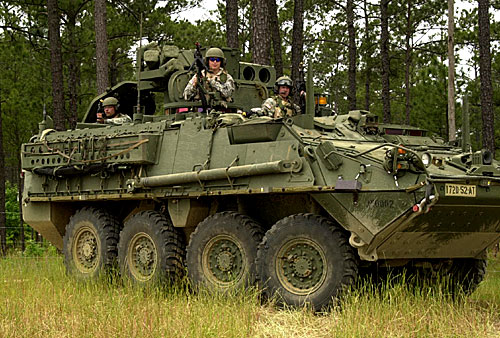

ODIN (ETS-I / ATGM) – More than 200 units produced. 20+ years combat experience, zero failures (Courtesy of the US Army)

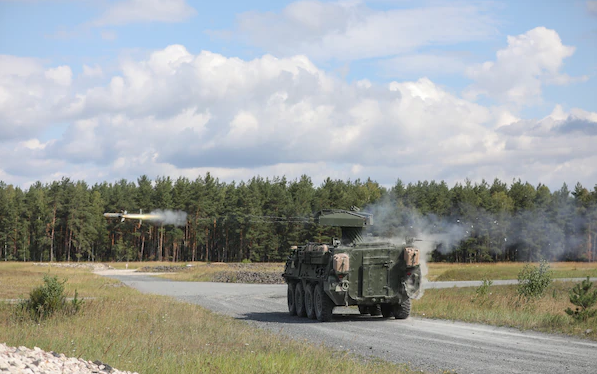

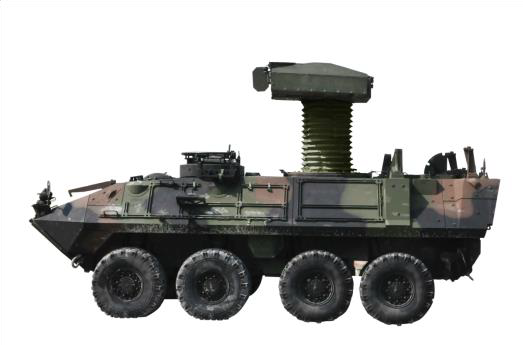

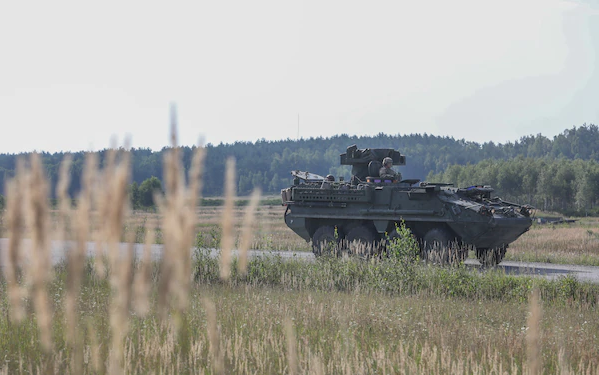

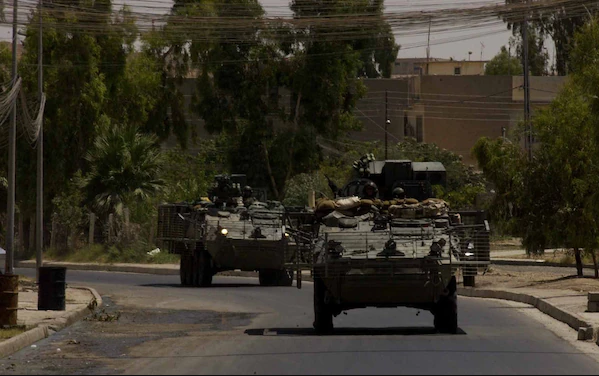

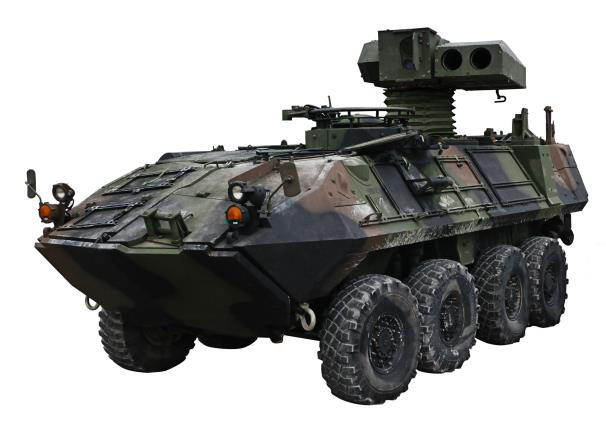

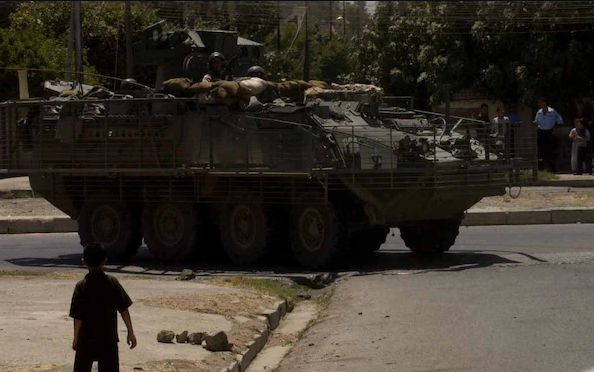

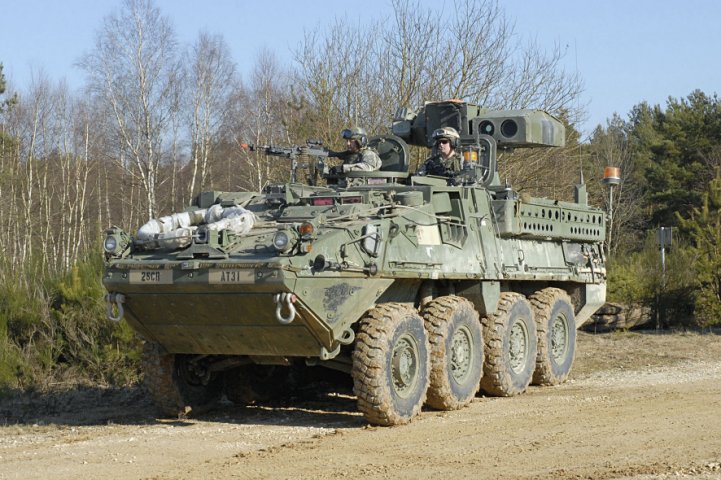

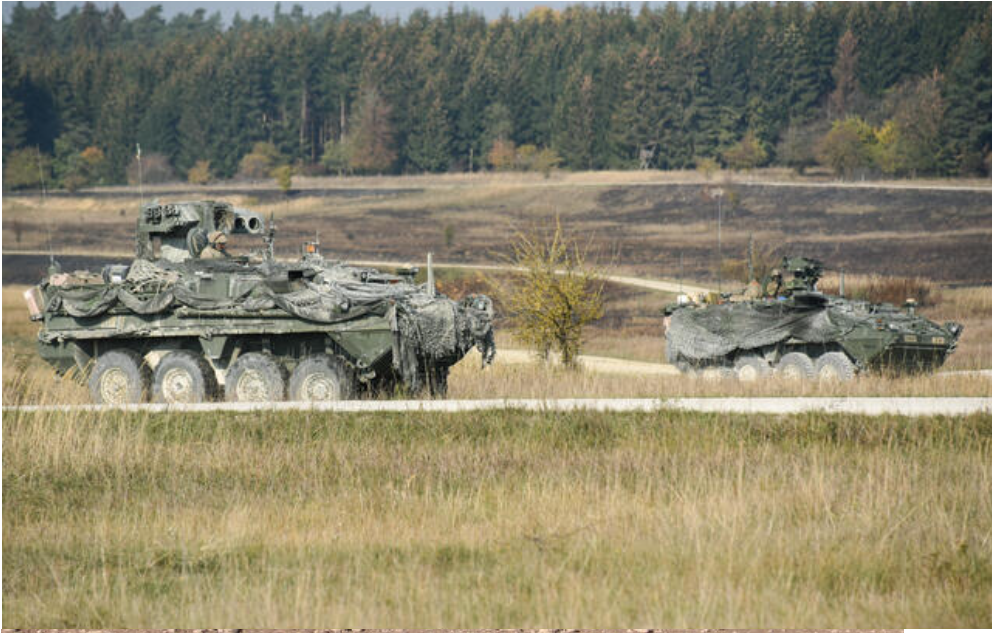

ODIN (ETS-II) – More than 150 units produced, 10+ years combat experiance, zero failures.

HEIMDALL

HEIMDALL (MLSP – SMEMS – REMS)

A mobile electrically driven telescopic mast with the ability to elevate a payload up to 2.2tons/4400lbs up to 20m/66 ft.

The elevated platform can integrate radar, a combination of different sensors or a missile platform to provide the operational users a longer range, high mobility and reliable integrated solution.

HEIMDALL can be trailer or truck mounted. The mast provides a stable platform with no guy wires required, with simple and fast setup time.

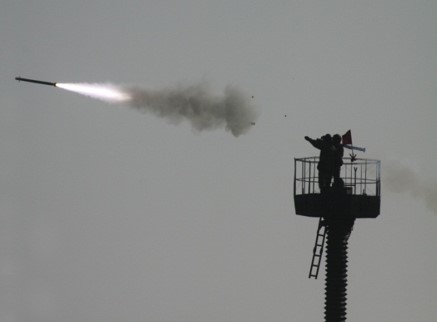

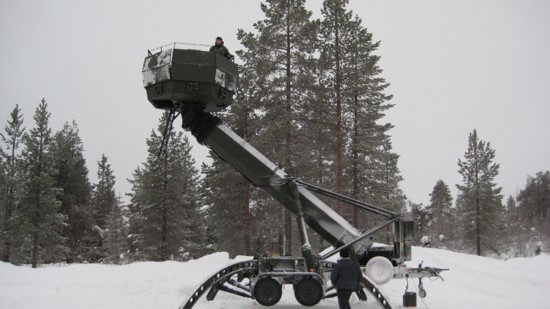

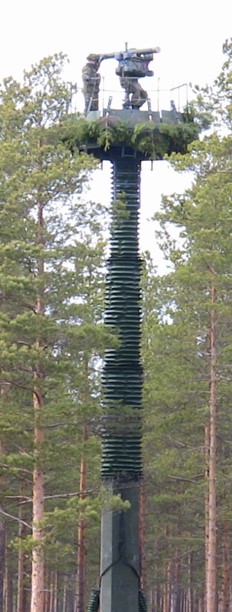

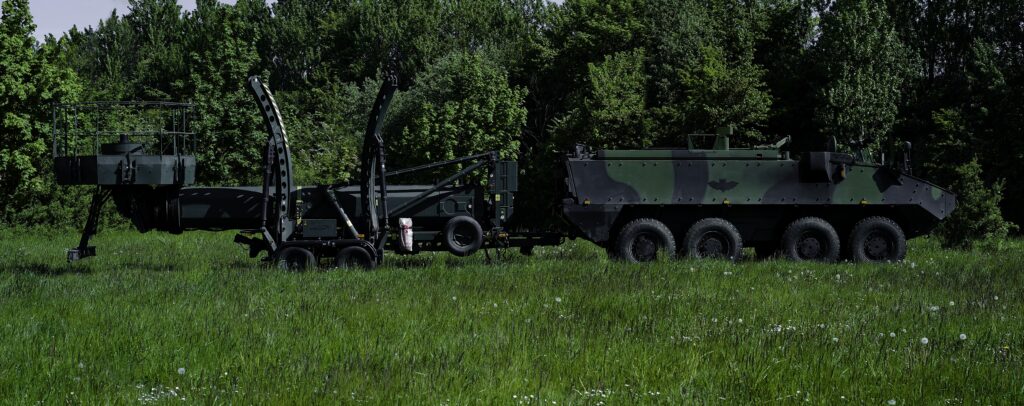

HEIMDALL (MSLP (Missile Stand Lifting Platform)) courtesy the Finish Army. 20m/60ft height, 2.2tons/4400lbs payload, resistance against the elements, wind, rain, snow, dust. 15 min deploy time. Auxilliary power unit integrated into trailer for full mobility without attachment.

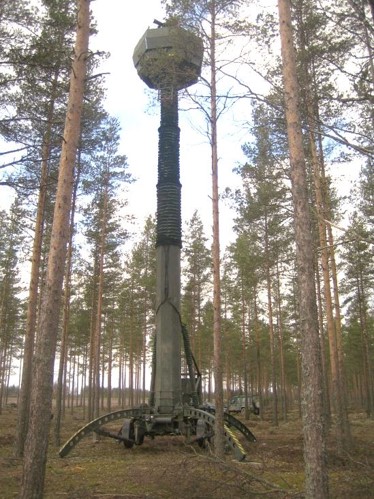

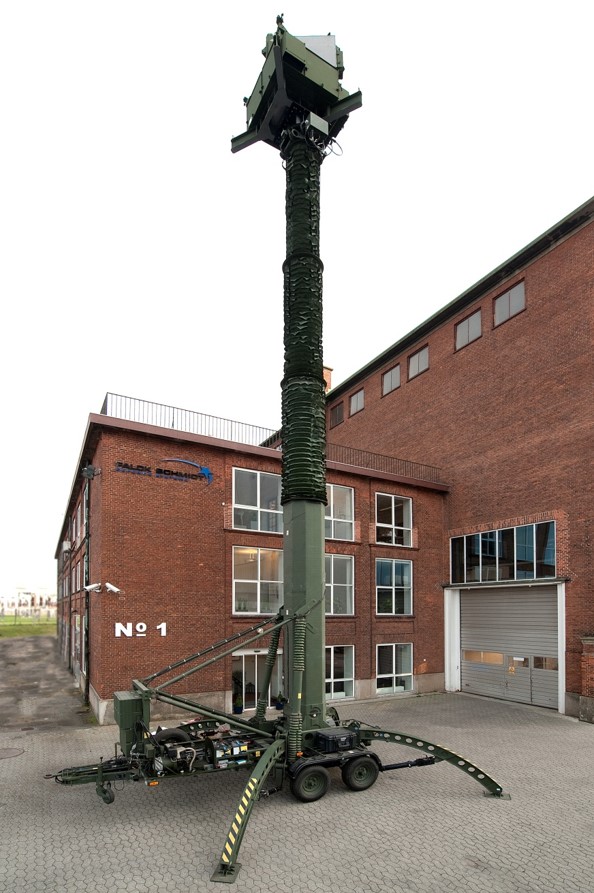

HEIMDALL (REMS (RADAR ELEVATED MAST SYSTEM)) 20m/60ft height, 2.2tons/4400lbs payload, resistance against the elements, wind, rain, snow, dust. 15 min deploy time. Auxilliary power unit integrated into trailer for full mobility without attachment.
